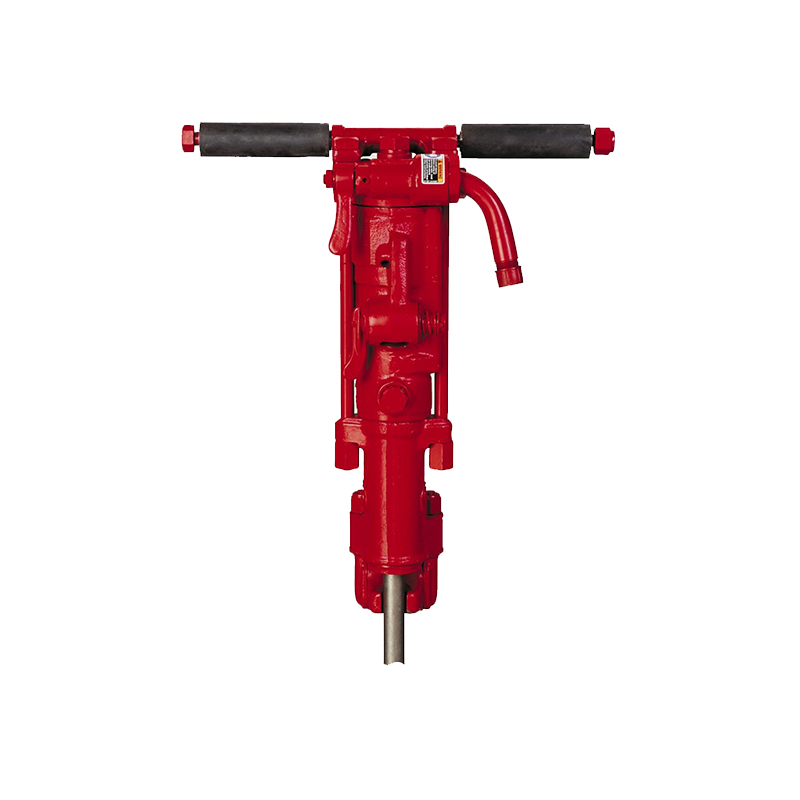

CP 0032 Pneumatic Rock Drill

TheCP 0032 A Sinker Drillis for holes up to 2 diameter and 10 feet deep. A top performer in its class, the CP 0032A is highly effective in general excavation work, quarry drilling, bench mining and other jobs requiring a sinker drill in the 45-pound class. The tools durable beavertail retainer helps it deliver increased contact and reduces collar wear.

Features:

Forged steel housings withstand rugged use
Cushioned piston reduces shock
Multi-position throttle for easy starting of holes
Blower lever for deep hole cleaning on CP 0032
Integral oiler provides continuous lubrication
3 /4 (NPT) air inlet swivel improves maneuverability
Double-grip handles
Left hand rotation

Specifications

SKU	Product Name	Vendor SKU	Chuck Size (in)	Muffler Included	Retainer Type	Power Source	Weight Class	Min Air consumption (cfm)	Max Air Consumption (cfm)	Tool Weight (lb)	Impact Rate (bpm)	Wet or Dry	Length (in)	Air Inlet (in)
CP-8900002016	CP 0032A Pneumatic Rock Drill 1 X 4-1/4	8900002016	1 x 4-1/4	No	Latch	Pneumatic	45	103	103	54	2220	Dry	23	3/4 NPT
CP-8900002013	CP 0032A Pneumatic Rock Drill 7/8 X 4-1/4	8900002013	7/8 x 4-1/4	No	Latch	Pneumatic	45	103	103	56	2220	Dry	23	3/4 NPT
CP-8900002017	CP 0032A Pneumatic Rock Drill 7/8 X 3-1/4	8900002017	7/8 x 3-1/4	No	Latch	Pneumatic	45	103	103	54	2220	Dry	23	3/4 NPT
CP-8900002014	CP 0032AS Pneumatic Rock Drill 7/8 x 4-1/4	8900002014	7/8 x 4-1/4	Yes	Latch	Pneumatic	45	103	103	54	2220	Dry	23	3/4 NPT
