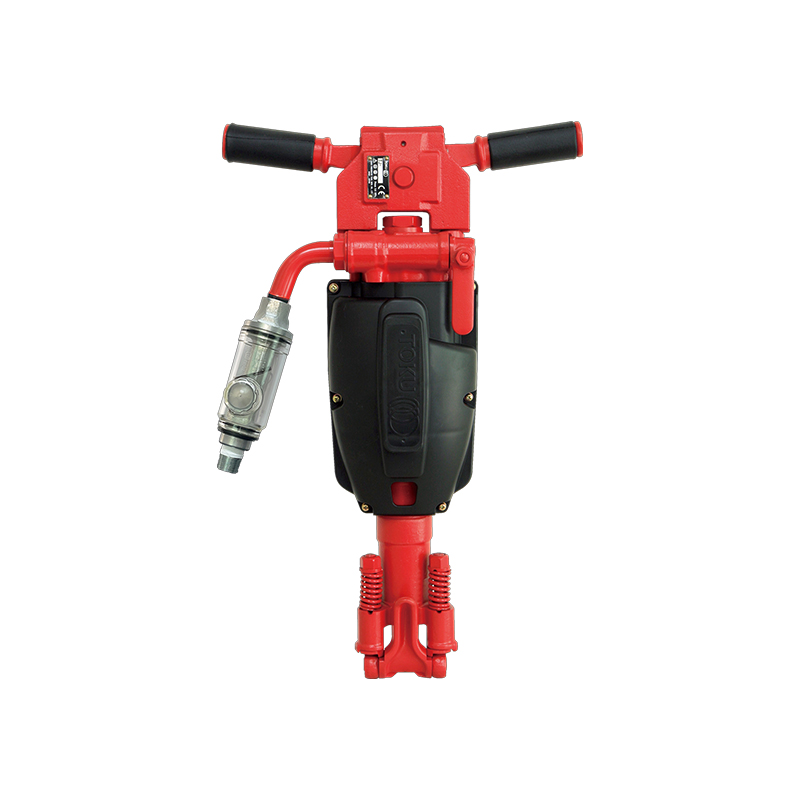

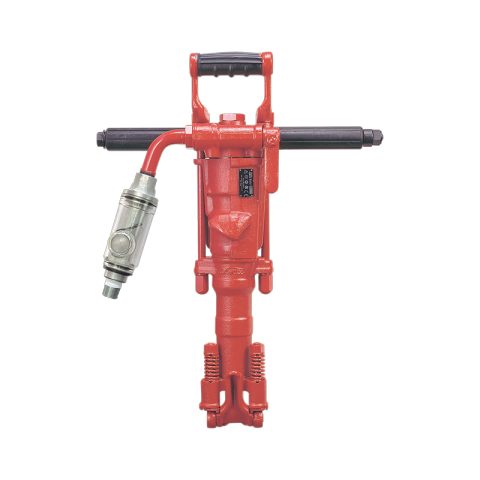

Tamco TJ-20 Rock Drill – 7/8 x 3-1/4 in

TAMCO offers multiple Toku rock drills for a wide variety of applications. Whether youre drilling through rock, concrete, or brick. TAMCO offers a rock drill that will fit your distinct requirements.

The Toku TJ-20 are mid-sized rock drills that pack a big punch. These drills are great for road building, shaft sinking, quarrying, as well as general demolition or construction work. Both models include standard, removable in line oilers.

Features:

Replaceable chuck bushings
Drop forged alloy steel construction
Forged latch retainers
Mufflers are available for the TJ-20 models include Clear-View in line oilers

Specifications

SKU	Product Name	Vendor SKU	Chuck Size (in)	Power Source	Weight Class	Min Air consumption (cfm)	Max Air Consumption (cfm)	Tool Weight (lb)	Impact Rate (bpm)	Wet or Dry	Bore (in)	Stroke (in)	Length (in)
TK-RD40-7/8	Tamco/Toku TJ-20 Pneumatic Rock Drill - 7/8 x 3-1/4	RD40-7/8	7/8 x 3-1/4	Pneumatic	30	87	87	41	2400	Dry	2-3/4	1-15/16	24-1/32
TK-RD40-7/8X4	Tamco/Toku TJ-20 Pneumatic Rock Drill - 7/8 x 4-1/4"	RD40-7/8X4	7/8 x 4-1/4	Pneumatic	30	87	87	41	2400	Dry	2-3/4	1-15/16	24-1/32

Information

TJ-20 Schematics
